€19,95
Description
Use this power adapter to provide continuous power to your battery-operated cameras (U424AA, U855AA, U471AA). US, UK, EU, and AUS adapters all included.
Works with Lorex Battery cameras
Thi USB power adapter is specifically designed to work seamlessly with Lorex battery-operated security cameras. It includes the necessary USB adapters to ensure a perfect fit for various Lorex camera models. Works with U424AA Series, U855AA Seriesand U471AA Series.
Secure Your Connections with Ease

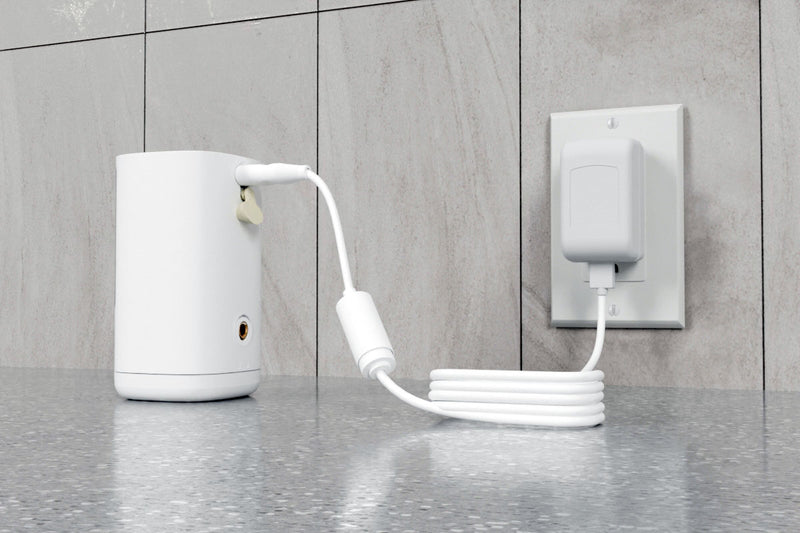

The compact design easily fits under weatherproof outlet covers, keeping your connections safe from the elements.
Protect Your Battery-Operated Security Cameras
Don't worry about damaging over charging your battery-operated security cameras. This adapter is designed to automatically stop charging when it is fully charged.
Product Compatibility
Video
Product Specifications
| Input Characteristics | |
|---|---|
| Rated Voltage | AC100-240V |
| Variation Range | AC90-264V |
| Rated Frequency | 50/60 Hz |
| Variation Frequency | 47-63 Hz |
| Input Current | 0.4 A max |
| AC Leakage Current | 0.25 mAh max. at 240 VAC |
| Output Characteristics | |
| Voltage Output | 5V |
| Minimum Load | 0 A |
| Maximum Load | 2.0 A |
| Rated Output Power | 10 W |
| Output Ripple & Noise | 100 mVp-p max. |
| Turn-On Delay Time | 3 sec max. at 100 VAC input |
| Rise Time | 100 ms max. at 100 VAC input |
| Hold Up Time | 5 ms min. at 100 VAC |
| Overshoot Voltage | 10% max. at turn on or off |
| Average Efficiency | 78.70% min. at input 115/230 VAC, and 100%, 75%, 50%, 25% Rated Load |
| Protection Function | Short circuit protection, Over current protection |
| Environmental Requirement | |
|---|---|
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Installation Temperature | -4 °F to 158 °F / -20 °C to 70 °C |
| Relative Humidity | 5% to 90%, non-condensing |
| Mechanical Requirement | |
| Enclosure (L × W × H) | 2.58 × 1.56 × 1.41” / 65.5 × 39.5 × 35.7 mm |
| Weight | 68.5g |
| Color | White |
| Port | USB Type A Female |
| Extension Cable | |
| Input End | USB Type A Male |
| Output End | USB Micro B Male (Compatible with U855AA, U424AA camera models) |
| Length | 14.76 ft / 4.5 m |
| Power Plugs | |
| Type | Types A, C, G, I |
| Cable Converter | |
| Length | 14.17” / 360 mm |
| Input End | USB Micro B Female |
| Output End | USB Micro B Male (Compatible with U471AA camera) |

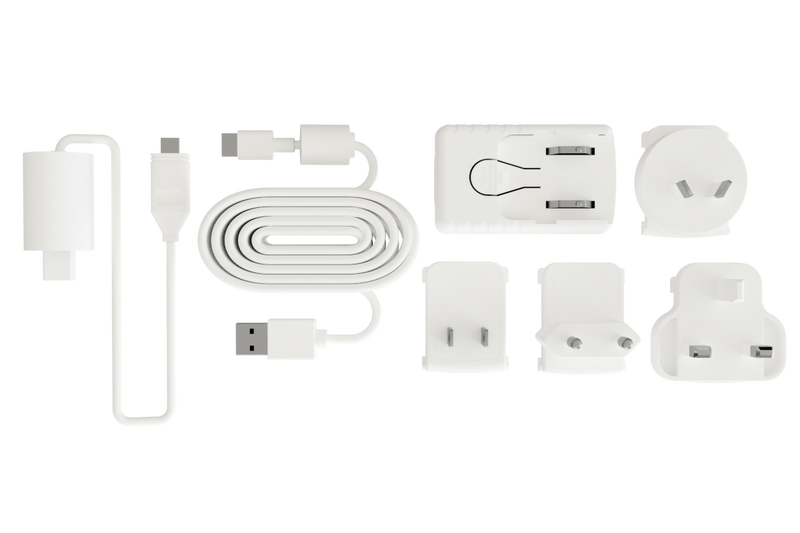

What's Included?
Package Contents:
USB Power Adapter
USB Cable
Cable Guide
Cable Converter
US Plug
(Type A)
EU Plug
(Type C)
UK Plug
(Type G)
AU Plug
(Type I)
Product Support
AP5V2000W-U Series - 5V 2A USB Power Adapter
