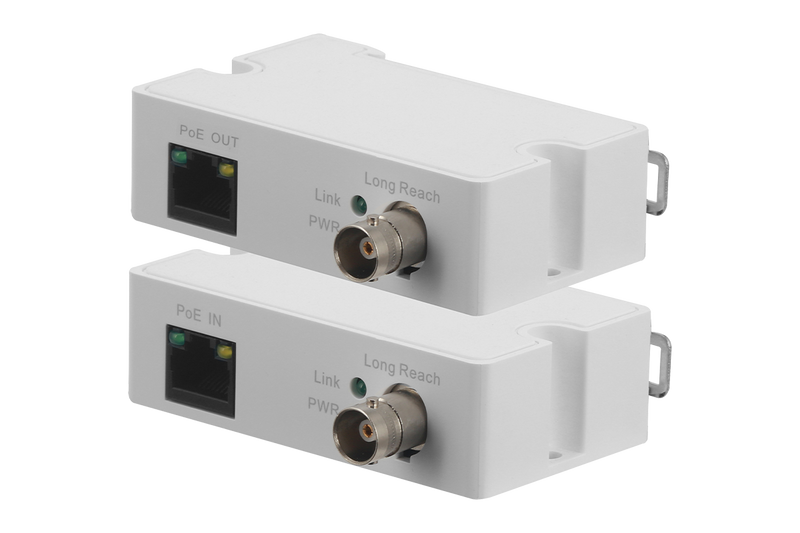

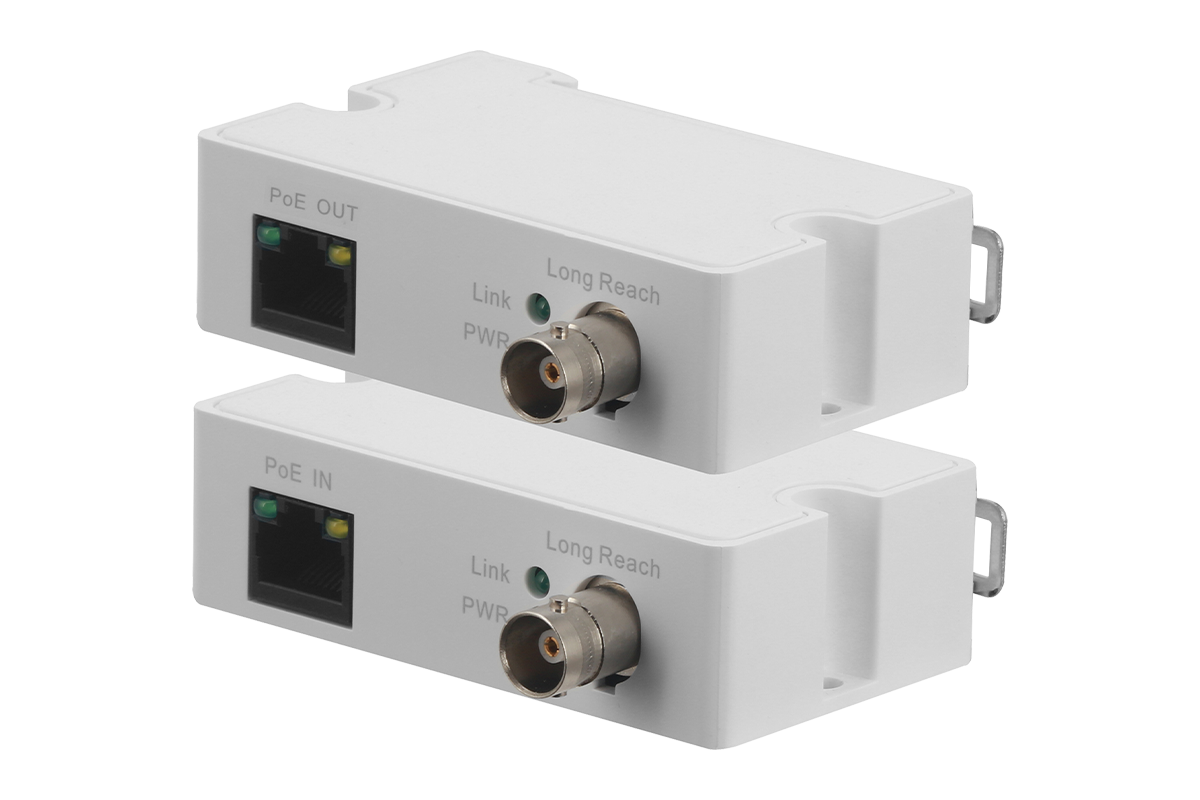

- Includes transmitter and receiver
- Compatible with DIN rail mount (28mm slide width)
- Compatible with Lorex outdoor junction boxes
- Supports PoE and ePoE cameras
Features
Use Coaxial-To-Ethernet Converters to upgrade your Analog Security System to IP without having to re-wire your current infrastructure with new ethernet cables. By simply converting BNC connections to Ethernet, you can easily (and cost-effectively) add new IP cameras and an NVR to transform your security system.
Save Cost and Time on Your System Upgrade
Avoid installation costs by easily adding the Coaxial to Ethernet Converter Transmitter (ACVTR) and Receiver (ACVRC) to the ends of your existing coaxial cables. Then simply use ethernet cables to connect to an NVR on the receiver end and an IP camera on the transmitter end. These converters support long-range power supply and data transmission to IP Cameras over the coaxial cables and a reliable connection up to 1,000m (3,280ft)* with 100Mbps and 10Mpbs transmission modes depending on the distance (400m/100Mbps, 1000m/10Mbps).
*The number of ACVRC (receiver) connected to the same switch/NVR cannot exceed 8. Performance and transmission speed are subject to coaxial cable quality and coupler quality.
Quick and Easy Mounting

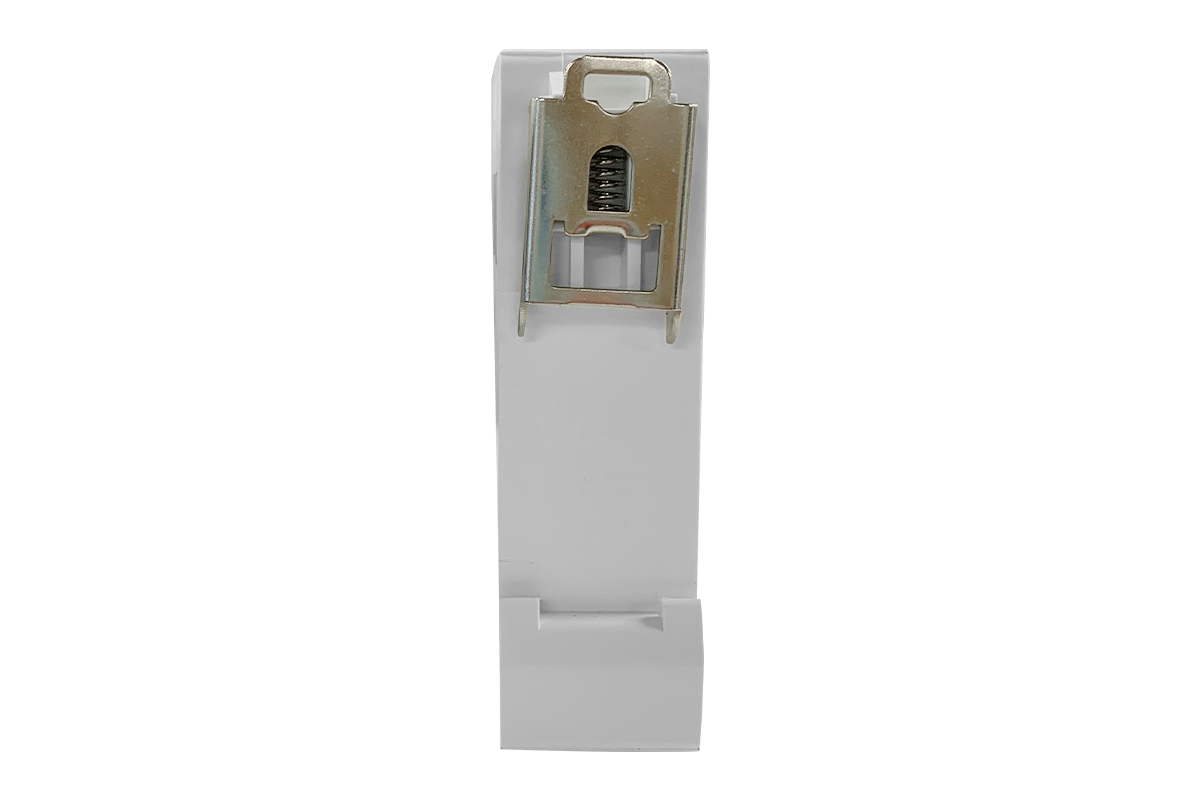

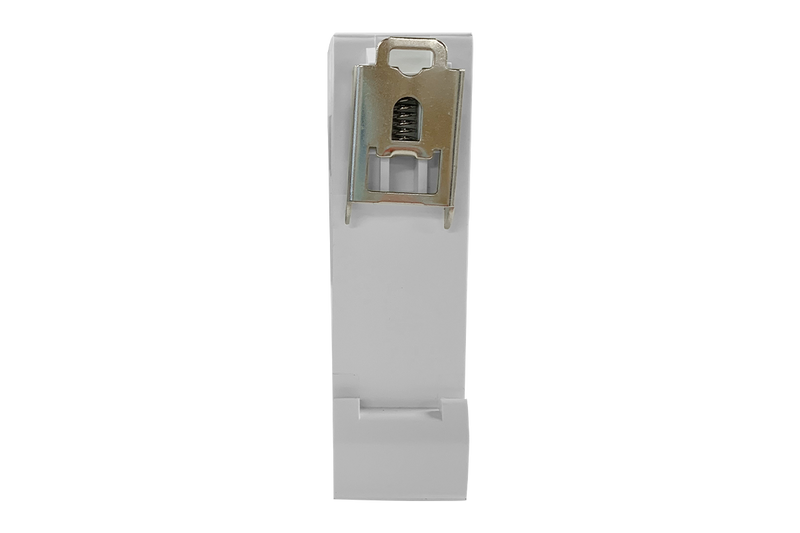

Use the DIN rail mount on the Transmitter/Receiver to easily attach to a DIN rail mount (not included)*. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.
*Supports slide width of 28mm (1.1").
Compatible with Lorex Outdoor Junction Box
The small design of the Transmitter allows it to easily fit inside a Lorex camera Junction Box (ACJNCD4B and ACJNCD3B, sold separately). This allows you to conveniently hide your security camera cables and Transmitter from view and protect them from vandalism.
Supports PoE and ePoE Cameras
The Coaxial to Ethernet Converter is compatible with our full range of wired IP security cameras, both PoE and ePoE. This includes our new Nocturnal 4 Series and Smart Security Lighting IP cameras.
Product Specifications
Maximum Length of Coaxial Cable Reference Table
| Camera | Max. Power Consumption (W) | Solid Wire RG59 Coaxial Cable* Note 1 |
Lorex 250ft RG59 Siamese Cable CB250URB |
Lorex 120ft RG59 Siamese Cable CB120URB |
Lorex 4K MCBL-60BNCU4K1 |
Lorex 1080p MCBL-BNCW |
Other Brands Coaxial Cable 4K | Other Brands Coaxial Cable 1080p | Other Brands Coaxial Cable 720p |
|---|---|---|---|---|---|---|---|---|---|
 LNB9242B / LNB9252B |
6.12 | 972m (3,189ft) | 304m (1,000ft) | 292m (960ft) | 73m (240ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 LNE9242B / LNE9252B |
7.92 | 972m (3,189ft) | 304m (1,000ft) | 292m (960ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E841CA / E841CAB |
7.68 | 972m (3,189ft) | 304m (1,000ft) | 292m (960ft) | 73m (240ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E841CD |
7.68 | 972m (3,189ft) | 304m (1,000ft) | 292m (960ft) | 73m (240ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 LNB9292B / LNB9282B |
9.5 | 608m (1,995ft) | 304m (1,000ft) | 292m (960ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 LNE9292B / LNE9282B |
11 | 608m (1,995ft) | 229m (750ft) | 219m (720ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 18m (60ft) |
 LNB9393 / LNB9383 |
7.9 | 695m (2,280ft) | 229m (750ft) | 219m (720ft) | 73m (240ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 LNE9393 / LNE9383 |
7.9 | 695m (2,280ft) | 229m (750ft) | 219m (720ft) | 73m (240ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E893AB |
9.5 | 608m (1,995ft) | 152m (500ft) | 183m (600ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E893DD |
9.5 | 608m (1,995ft) | 229m (750ft) | 219m (720ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E892AB |
9.5 | 608m (1,995ft) | 152m (500ft) | 183m (600ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E891AB |
10.8 | 304m (997ft) | 76m (250ft) | 110m (360ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E896AB |
10.2 | 304m (997ft) | 152m (500ft) | 183m (600ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 36m (120ft) |
 LNZ44P4BW |
10 | 304m (997ft) | 36m (120ft) | 36m (120ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 E881AP |
24 | 304m (997ft) | 36m (120ft) | 36m (120ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) |
 LNZ44P12B |
24 | 304m (997ft) | 36m (120ft) | 36m (120ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 55m (180ft) | 36m (120ft) |
Note 1:
*RG59, 95% Braid, 20AWG(Solid) cable
The following NVR or PoE switches had been verified compatible with:
NVRs: N845 Series, N844 Series, N843 Series, N842 Series, N864 Series, N863 Series, N862 Series, N883 Series, N882 Series, N881 Series, NR616X4T
PoE Switches: ACCLPS263B, AEX8
| Function Port | 1*10/100 Mbps Base-TX, 1*BNC |
|---|---|
| Power Consumption | <2W |
| Transmission Bandwidth | RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps |
| PoE Protocol | 48V Passive PoE (Pairs 1, 2+; 3, 6 Return) |
| Network Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
| Operating Temperature | –30°C to 65°C (–22°F to 149 °F ) |
| Operating Humidity | 5%–95% |
| Weight | 61 g (0.13 lb) |
| Dimension (W×D×H) | 79 mm × 52 mm × 23 mm |
Take RG59 as an example (Max. DC resistance < 5.0Ω/100m)
| ACVTR/ACVRC | Supports with 48V | Supports with 53V | |
|---|---|---|---|
| 100m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 21 | 25.5 | |
| 200m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 15 | 24 | |
| 300m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 11 | 19 | |
| 400m | Bandwidth (Mbps) | 100 | 100 |
| Load Capacity (W) | 9 | 16 | |
| 500m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 7 | 13 | |
| 800m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 5 | 8 | |
| 1000m | Bandwidth (Mbps) | 10 | 10 |
| Load Capacity (W) | 4 | 6 | |
What's Included?
Product Support
ACVTR - Coaxial to Ethernet Converter for PoE Cameras (Transmitter)
ACVRC - Coaxial to Ethernet Converter for PoE Cameras (Receiver)
