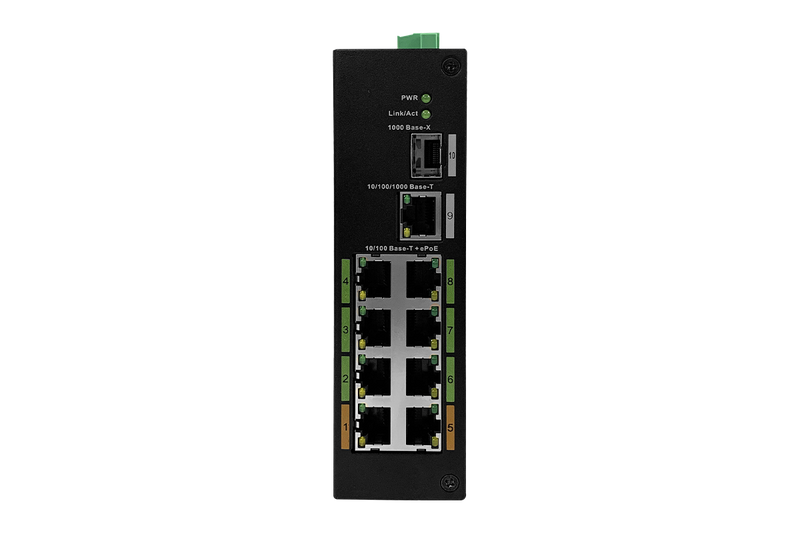

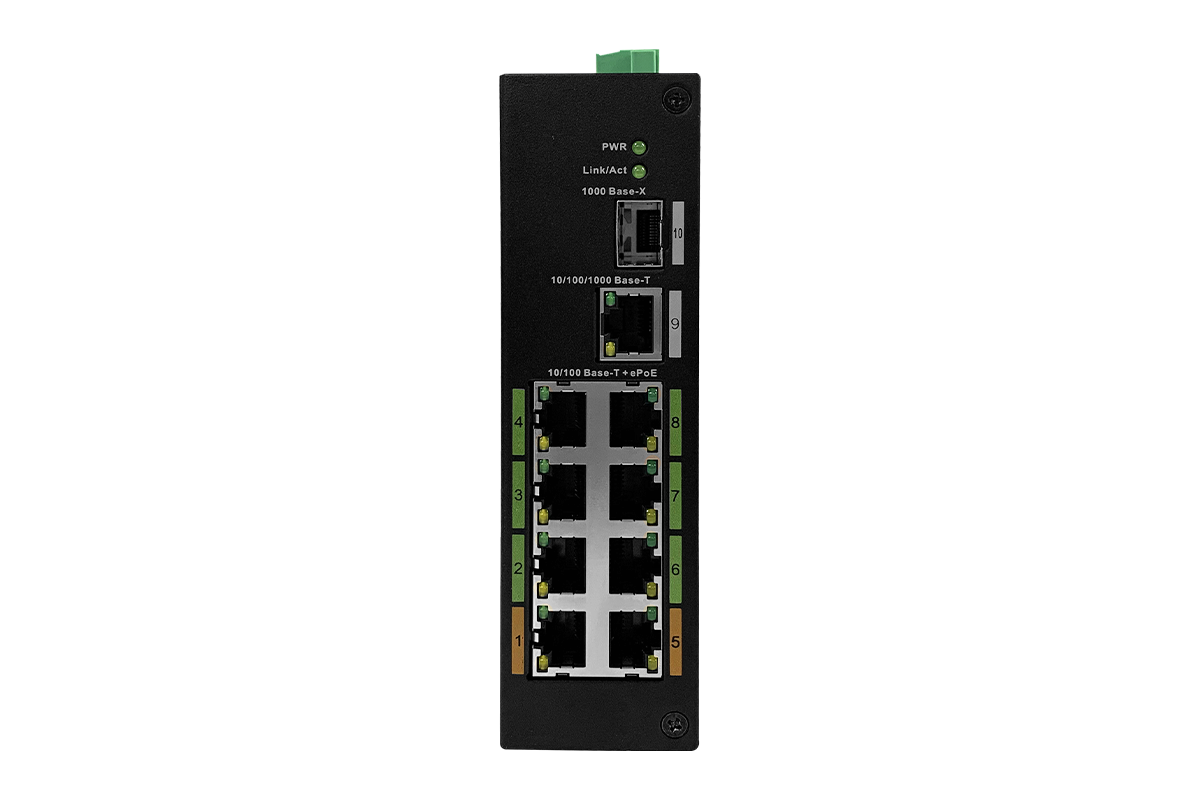

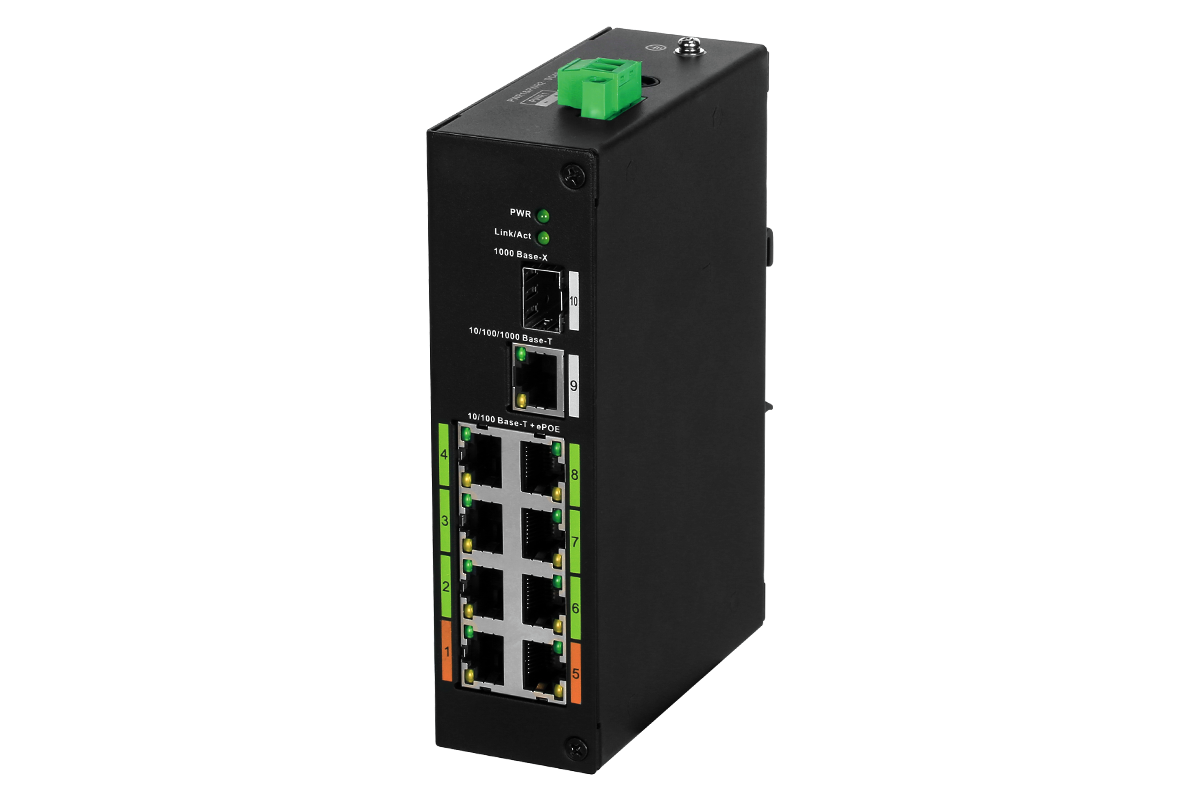

Lorex 8-Port ePoE Switch
Features
Expand the reach and simplify the installation of your NVR security camera system with this 8-Port ePoE switch. This switch can provide PoE (Power-over-Ethernet) transmission 800 meters at the speed of 10Mbps or 300 meters at the speed of 100Mbps.
ECO-FRIENDLY
Less power consumption
ECONOMIC
Cost-effective
EXTENDED
Long-range transmission
ETHERNET OVER COAX*
Easy upgrade to IP
*Coaxial-To-Ethernet Converter is needed (sold separately)
Save on Power Consumption
Power consumption per switch is 3 Watts. In total, you can save 21 Watts when using this ePoE switch with your ePoE IP Camera.
One day saves
0.5kWh
0.5kWh
One month saves
15kWh
15kWh
One year saves
182.5kWh
182.5kWh
Reduce carbon emission
143kg per year
143kg per year

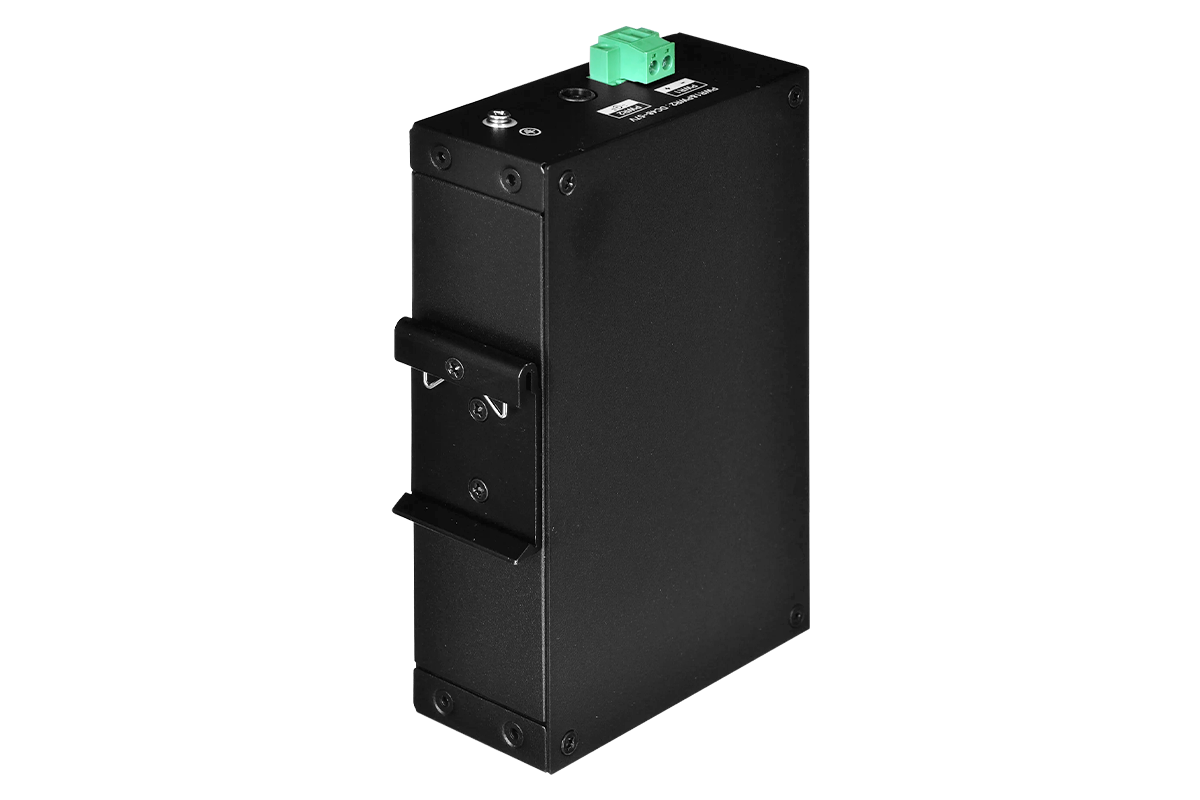

Quick and Easy Mounting
Easily mount this ePoE Switch using the DIN rail mounting. Simply lay the switch hook on the rail then press in to secure the buckle into the slide.
Note: The AEX8 ePoE switch supports the slide width of 28mm (1.1"). The mount shown in the image is for illustrative purposes only and is not included in the package.
Flexible Surveillance System Design
Use this PoE switch to extend the distance of your cameras from your recorder. With ePoE support up to 800m, this switch allows for more flexible surveillance system design, improves reliability, and saves on construction and wiring costs.
Product Compatibility
N841 4K Smart Detection NVR
compatible
N842 Series 4K 8-Channel Network Video Recorder
compatible
N843-Series 4K 8-Channel NVR
compatible
N844 Series 4K 8-Channel Network Video Recorder
compatible
N845 Series - Lorex Fusion 4K 16-Channel Network Video Recorder
compatible
N846 Series - Lorex Fusion 4K 16-Channel Network Video Recorder
compatible
N847 Series - Lorex Fusion 4K 16-Channel Network Video Recorder
compatible
N861B Series - 4K 16-Channel NVR with Smart Motion Detection
compatible
N862B Series - 4K 16-Channel NVR with Smart Motion Detection*
compatible
N863 Series - 4K 16-Channel Network Video Recorder
compatible
N864 Series Lorex - Fusion 4K 16ch Wired NVR System
compatible
N881B-N882B Series 4K Ultra HD Security NVR
compatible
N883 - 4K Pro Series Network Video Recorder
compatible
N884 - 4K Pro Series Network Video Recorder
compatible
E841CA - A Series A10 4K IP Wired Bullet Security Camera
compatible
E841CD - A Series A10 4K IP Wired Dome Security Camera with Listen-in Audio
compatible
E863SB Series - 4K Smart Security Lighting Bullet PoE IP Wired Camera
compatible
E863SD Series - 4K Smart Security Lighting Dome PoE IP Wired Camera
compatible
E881AP 4K Ultra HD IP Pan-Tilt-Zoom Camera with
compatible
E891AB, 4K Ultra HD Smart Deterrence IP Camera
compatible
E892AB 4K Ultra HD Smart Deterrence IP Camera with Smart Motion Plus
compatible
E893AB - H Series H13 4K IP Wired Bullet Security Camera with Smart Deterrence
compatible
E893DD - H Series H13 4K IP Wired Dome Security Camera with Smart Deterrence
compatible
E894AB, E894ABB - H Series H14 4K IP Wired Bullet Security Camera with Smart Security Lighting
compatible
E895AB Series - Lorex 4K Deterrence Bullet AI PoE IP Wired Camera
compatible
E896AB - H Series H16 4K IP Wired Bullet Security Camera with Smart Security Lighting
compatible
E896DD - H Series H16 4K IP Wired Dome Security Camera with Smart Security Lighting
compatible
LNB9242B - Nocturnal Series N3 4K Black IP Wired Bullet Camera with Listen-In Audio
compatible
LNB9252B - Nocturnal Series N3 4K White IP Wired Bullet Camera with Listen-In Audio
compatible
LNB9282B - Nocturnal Series N3 4K Black IP Wired Bullet Security Camera with Motorized Varifocal Lens
compatible
LNB9292B - Nocturnal Series N3 4K Dome IP Wired Bullet Security Camera with Motorized Varifocal Lens
compatible
LNB9383, LNB9393 - Nocturnal Series N4 4K IP Wired Bullet Camera with Motorized Varifocal Lens
compatible
LNE9242B - Nocturnal Series N3 4K Black IP Wired Dome Camera with Listen-In Audio
compatible
LNE9252B - Nocturnal Series N3 4K White IP Wired Dome Camera with Listen-In Audio
compatible
LNE9282B - Nocturnal Series N3 4K Black IP Wired Dome Security Camera with Motorized Varifocal Lens
compatible
LNE9292B - Nocturnal Series N3 4K White IP Wired Dome Security Camera with Motorized Varifocal Lens
compatible
LNE9383, LNE9393 - Nocturnal Series N4 4K IP Wired Dome Camera with Motorized Varifocal Lens
compatible
LNZ44P12B - PTZ Series 2K IP Wired Camera with 12x Zoom
compatible
LNZ44P4B - PTZ Series 2K IP Wired Camera with 4x Zoom and IK10 Vandal-Proof Rating
compatible
CAT5e Ethernet Cables
compatible
Shielded CAT6 Extension Cable 100ft, 200ft, 300ft
compatible
N910 Series - 4K+ Ultra HD 12MP 16 Camera Capable NVR
compatible
E842CA, E842CAB - A Series A14 4K IP Wired Bullet Security Camera
compatible
E842CD - A Series A14 4K IP Wired Dome Security Camera
compatible
E871AB - H Series H20 4K Dual Lens Wired Bullet Security Camera with Smart Security Lighting
compatible
E910AB - H Series H30 4K+ 12MP IP Wired Bullet Security Camera with Smart Security Lighting
compatible
E910DD - H Series H30 4K+ 12MP IP Wired Dome Security Camera with Smart Security Lighting
compatible
LNB45ABB, LNB45ABW - A Series A4 4MP IP Wired Bullet Security Camera
compatible
LNE45DDB, LNE45DDW - A Series A4 4MP IP Wired Turret Security Camera
compatible
LNZ45P25 Series - K (4MP) IP Wired PTZ Security Camera with 25x Zoom
compatible
LNZ81P25 - PTZ Series 4K IP Wired Camera with 25x Zoom and IK10 Vandal-Proof Rating
compatible
ACVRC - Coaxial to Ethernet Converter for PoE Cameras (Receiver)
compatible
Product Specifications
- Supports long distance PoE transmission up to 800m with ePoE technology
- Layer-two ePoE switch
- MAC auto study and aging, MAC address list capacity is 8K
- Conform IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
- Supports IEEE802.3af, IEEE802.3at, Hi-PoE standard
- Industrial wide temperature design
- Port indicator light is to display the status of current transmission mode for the port, which includes IEEE, E100 and E10
| Ethernet Port | 1*1000 Base-X 1*10/100/1000 Base-T 8*10/100 Base-T(PoE power supply) |
|---|---|
| PoE Power Consumption | Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W |
| PoE Protocol | IEEE802.3af, IEEE802.3at, Hi-PoE |
| Switching Capacity | 8.8Gbps |
| Packet Forwarding Rate | 4.17Mpps |
| Packet Buffer Memory | 2.75Mb |
| MAC Table Size | 8K |
| Application Humidity | 10%~90% |
| Power | DC48~57V power adapter |
| Lightning Protection | Common Mode 4KV Differential Mode 2KV |
|---|---|
| Working Temperature | -30°C~65°C |
| Weight | 0.59kg |
| Dimensions (H×D×W) | 5.9 × 3.9 × 1.6" 150 × 100 × 42mm |
| Working Mode | LED Indicator |
| IEEE mode | Normally on |
| E100 | On for 3 seconds, off for 1 second |
| E10 | On for 1 second, off for 1 second |
What's Included?
- 10/100 Base-T + ePOE
- 100/1000 Base-X
- 10/100/1000 Base-T
- Fiber Port Status Indicator
- Power Status Indicator
- PWR1
- PWR2
- Ground Wire Terminal
Package Contents:
AEX8 Switch × 1

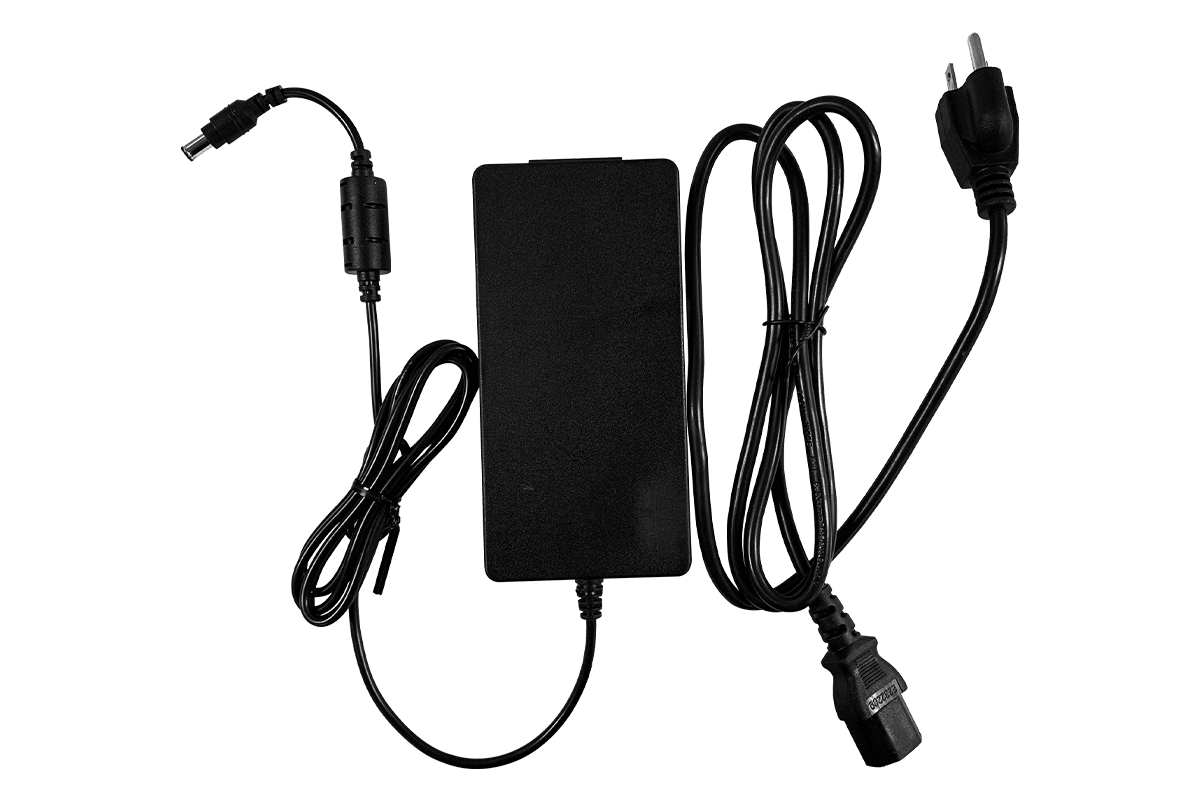

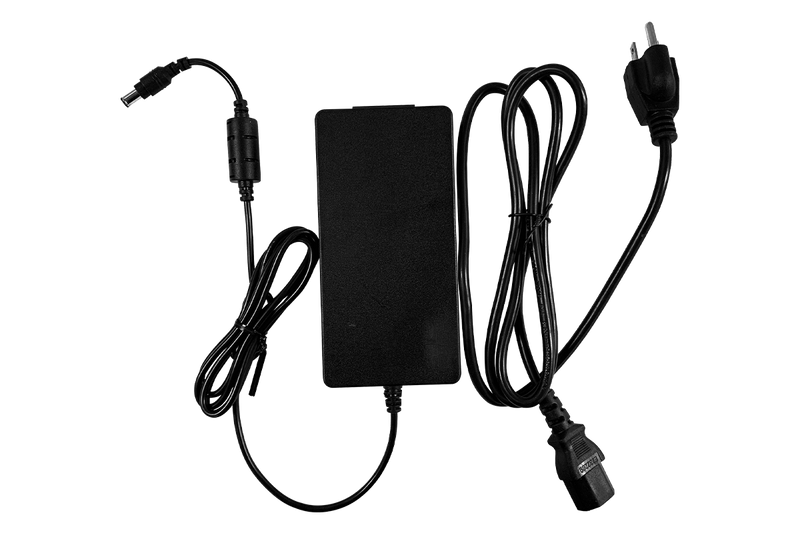

Power Adapter and Cable × 1
Product Support
AEX8 - 8-Port ePoE Switch
