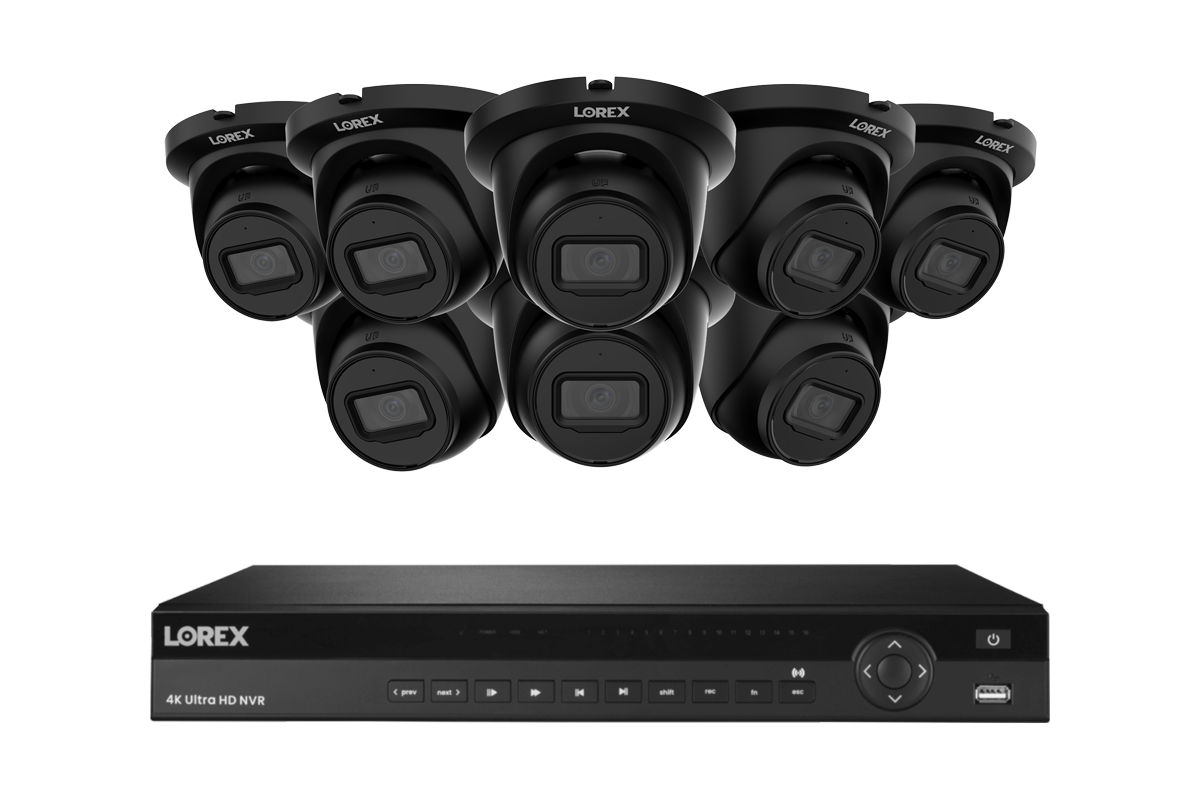

Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras - Black 16
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras- White 8
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras - White 16
zoom Roll over image to zoom in Click on image to zoom
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
A Series

Lorex Elite Series 4K 16 Camera Capable 4TB Wired NVR System with 4MP (2K) A4 IP Turret Cameras

Save $275.00 (25%)
N2K4-168BT-A4
Number of cameras:
Color:
$824.99 Reg. $1,099.99
Receive an exclusive 15% discount with Lorex Upgrade Program. Click here to learn more.
$824.99
SAVE $275.00 (25%)
bi-shield

Safe & Secure

Apps are protected with end-to-end data encryption.

bi-returns

Risk Free

Return for any reason within 30 days of delivery.

bi secure payment

Flex Payments

Spread out payments with easy financing options.

No Monthly Fees

Local recording protects privacy and saves money.

Features

Equip your business or clients with a professional surveillance system that delivers exceptional performance at an affordable price. The Lorex A4 Series 4MP IP Wired Turret Security Cameras offer professional 2K clarity, Color Night Vision, Smart Motion Detection, Listen-In Audio, and IP67 weatherproof ratings to ensure uncompromising security all year long. These cameras connect to the powerful 16-channel Network Video Recorder for comprehensive 24/7 surveillance of any small to medium sized property.



Resolution

Color Night
Vision

Wide Dynamic
Range

IP67
Weatherproof

Built-in
Microphone

Person and Vehicle
Detection

4TB Secured Local
Storage


Close up of security camera lens


Sharp Details, Sharp Security

2K resolution captures detailed footage for undeniable evidence.



close up camera lens with colorful lens flare


Night Vision Evolved: Capture Every Detail in Color

Don’t miss a thing with Lorex’s Color Night Vision (CNV) in low light conditions or crisp black and white footage in total darkness.



WDR example


Detail in Any Lighting

Wide Dynamic Range cuts through glare and darkness to reveal what standard cameras miss.



IP67 Weatherproof Security Cameras with water flowing around them


All-Season Security

Heavy-duty aluminum exteriors and IP67 weatherproof rated designs guarantee extreme temperature (-40°F to +140°) and weather durability.



security camera with audio wave in background


Hear the Whole Story

A built-in microphone captures audio for an extra layer of evidence.



smart motion detection example of person and vehicle


Smart Motion Detection (Person and Vehicle)

Person and vehicle detection helps identify and categorize motion events, and limit unnecessary alerts caused by other moving objects.



close up back of NVR with cables


Wired Reliability

Connect this camera to the NVR for a stable camera connection, 24/7 continuous recording and the ability to record without internet.



inside view of NVR with hard drive


4TB Secured Local Storage

Access all premium features and have ample storage for your video recordings without recurring fees or subscriptions. Keep your recordings in your control thanks to the NVRs local 4TB security grade hard drive.


Lorex App Live View screenshot

Most of your security footage is of you!

Keep your recordings private and in your control.

Dedicated Local Storage

  • Keep Moments Private
  • All Data/Footage Stored Locally

In-Camera Edge AI

  • Detection Processed Locally
  • Private and Secure Data

Private by Design

  • Enhanced Privacy Features
  • Control Devices, Storage, and Settings

Learn More



Try our new Lorex Pro app

Enjoy an updated user experience with enhanced features and functionalities to maximize your security system control.




What's Included?

N864 Front Overview
N864 Back Overview
  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  • Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com/smarthome
  • Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  • Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

LNE45DD Overview
  1. 12V DC Power Connector
  2. Ethernet Connector
  3. Release Tab
  4. IR (Infrared) Light
  5. Camera Lens
  6. Microphone
  7. Adjustment Screw
  8. Cable Notch
  9. MicroSD Card Slot*
  10. Reset Button


Package Contents:

4MP IP PoE Wired Turret Camera

Mounting Bracket

Mounting Kit

Weather-resistant Cap

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
